Since 1984, INTEGRATED has offered an innovative, world-class suite of complete solutions for engineering and scientific designs involving multiple disciplines – creating simulation software programs that analyze a full spectrum of physical problems.

INTEGRATED is the industry leader in Boundary Element Method (BEM) CAE software. BEM not only provides the most accurate numerical field solutions, but it is also the method of choice for problems involving the modeling of space around the device: that is what we call “large open regions”. Today, no one else in the market offers such a variety of field solvers within the same software packages (BEM, FEM and FDTD). INTEGRATED takes pride in its achievement of combining state of the art technology with quick, responsive customer service and support.

Updates in our Version 11.1

Enhanced Model Tree for easy Physics assignments to the model
106+ newly added API functions, such as:
- Set transient values of the impressed electric field
- Set phasor values of the impressed electric field
- Assign congruent geometry to a permanent magnet
Enhanced parametric setup dialog box for easy analysis
New feature for designing complex windings in transformers
New geometry creation commands

Applications

Transformers

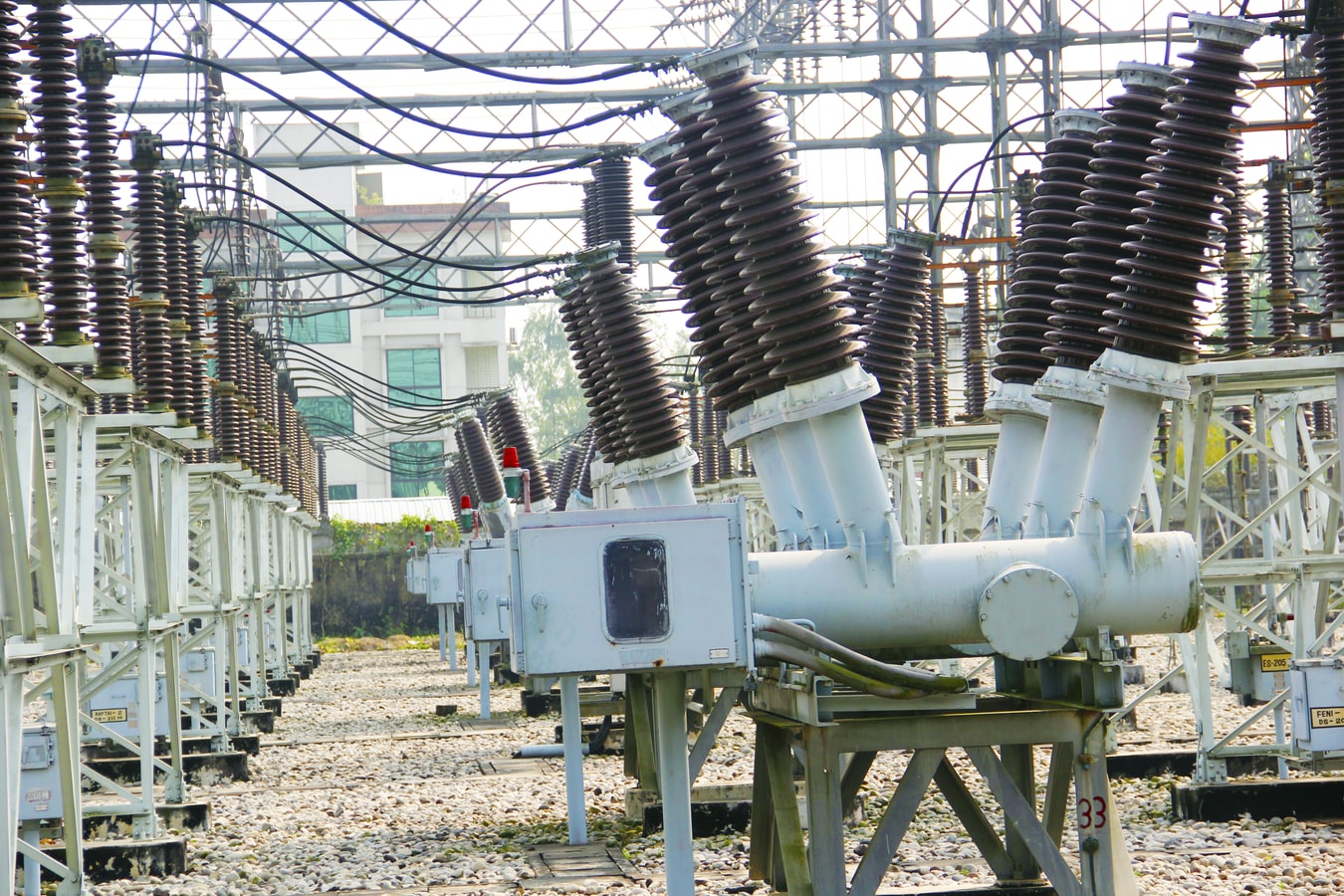

Transformer analysis is one of the most widely used applications for our electromagnetic simulation software, and our customers depend on accurate, reliable results. IES has helped the power and distribution, and manufacturing industries for decades, solving complex design challenges in an effort to make power systems and their components more efficient, affordable and environmentally friendly.

Transmission Lines

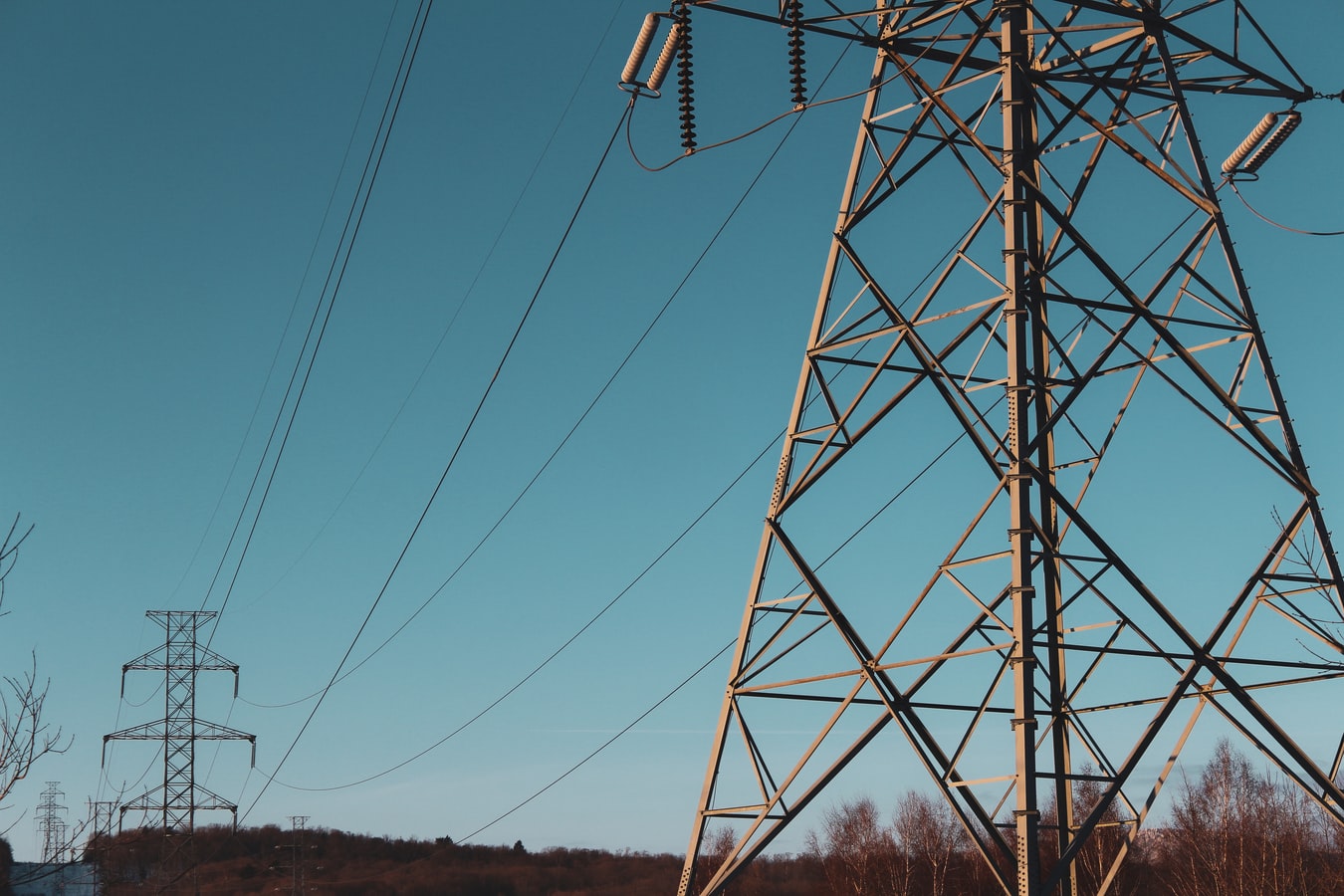

Applications such as high voltage transmission require the analysis of flashover discharges. The insulators that support the power lines are associated with complicated conducting structures and corona rings. The simulation of a complete transmitting tower along with power lines – supported by the insulators – is fundamental for the estimation of the electric field levels at an arbitrary point on the insulators and the corona rings.

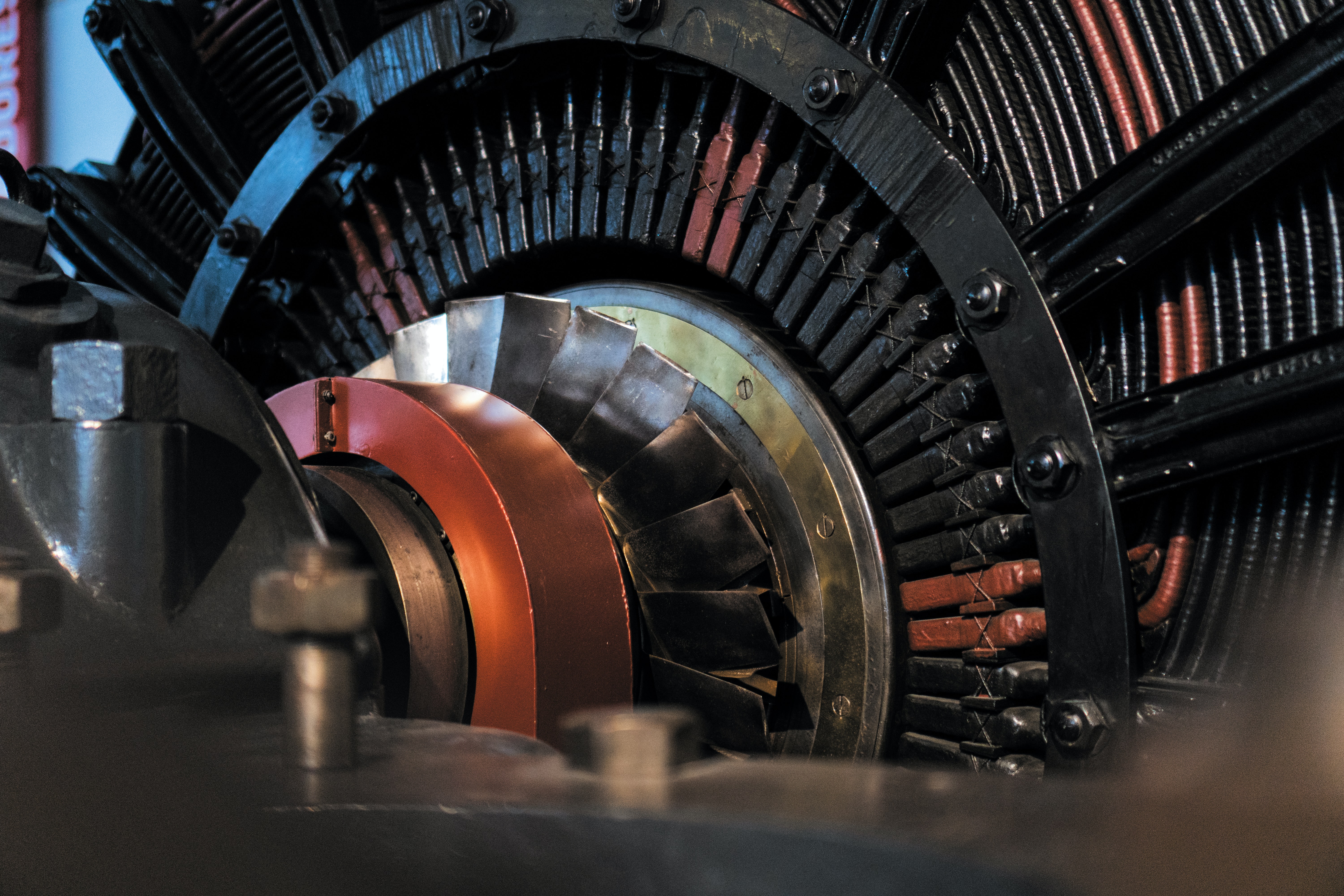

Actuators

INTEGRATED’s software programs are leading simulation tools to design Actuators. Our Actuator design software programs provides innovative proprietary Boundary Element Method (BEM) technology for the most accurate numerical field solutions to simulate the Actuators. Finite Element Method (FEM) analysis solver is also incorporated in programs to provide additional benefit.

More Applications

Products

ELECTRO™

ELECTRO™, the 2D/RS electric solver from INTEGRATED Engineering Software has set the standard for electric field design software. ELECTRO™ combines the advantages of both the Boundary Element Method (BEM) and Finite Element Method (FEM) field solvers.

COULOMB™

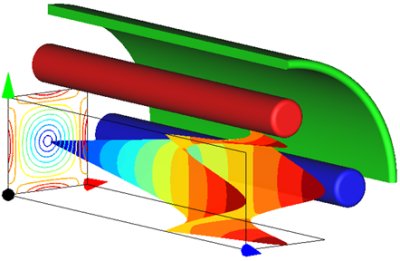

COULOMB™, a powerful 3D electric design and analysis software featuring our innovative Boundary Element Method (BEM) technology, well suited for applications where the design requires a large open field analysis and exact modeling of the boundaries.

MAGNETO™

MAGNETO™, a fully integrated 2D/RS magnetic solver from Integrated Engineering Software puts you on the cutting edge of electromagnetic design. MAGNETO™ provides both Boundary Element Method (BEM) and Finite Element Method (FEM) solvers, so you can select the best analysis method for your application.

LORENTZ™

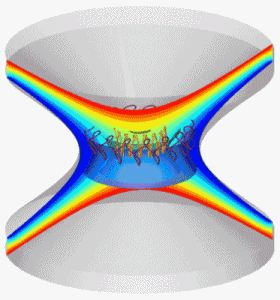

LORENTZ™ suite of CAE programs provide sophisticated simulation and design tools customized for charged particle trajectory analysis in 2D/RS and 3D. The diverse applications of LORENTZ™ include studying the motion of particles in traps such as a Penning trap, or the paths of particles through optical components such as bending magnet and multiple focusing magnets, or the behavior of beams such as the dual grid ion gun.

AMPERES™

AMPERES™ is INTEGRATED’s powerful threedimensional magnetic field solver offering superior design capabilities in one fully integrated package. AMPERES™ greatly expands design potential and allows you to simulate and optimize electromagnetic components and systems before the manufacturing stage.

FARADAY™

FARADAY™, a 3D time-harmonic eddy current field solver from INTEGRATED Engineering Software gives you the advantage you need to meet this challenge head on. Using our innovative Boundary Element Method (BEM) and Finite Element Method (FEM) technologies, FARADAY™ is the only clear choice for applications requiring large open region analysis, exact modeling of boundaries and problems where dealing with small skin depths is critical.

OERSTED™

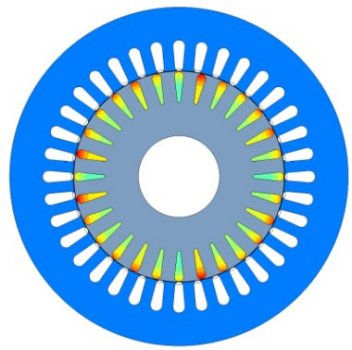

OERSTED™, a 2D/RS time-harmonic eddy current solver from INTEGRATED Engineering Software, delivers the power and performance needed to accomplish transient EM field solving. Using our innovative Boundary Element Method (BEM) technology with the Finite Element Method (FEM) solver, OERSTED™ distinguishes itself in magnetic design problems that require large open field analysis, exact modeling of boundaries and in applications where dealing with small skin depths are critical.
