Design of electromechanical equipment, such as motors and solenoids requires electromagnetic simulation software specifically designed for magnetic analysis which inherently includes coils and windings and the ability to do transient analysis. For design of sensors, magnetic shielding, or specific applications like Nuclear Magnetic Resonance (NMR), very high accuracy of the field may be required.

INTEGRATED’s CAE software offers the Finite Element Method (FEM) and Boundary Element Method (BEM) to specifically cater to this wide variety of applications in the magnetic analysis field.

Combined physics interacting with different solvers provide the optimal solution for any electromagnetic or electrothermal problem.

Thanks to the parallelization of our programs (included in our packages at no extra cost) the solution speed is certainly a major benefit for the users of CAE software.

Analyze and model:

• Forces and torque in motors, magnetic bearings, magnetic couplings, as well as current carrying coils for loudspeakers and voice coil actuators, among others
• Field values vs position for Hall Effect sensors
• Flux linkage and induced voltage for Variable Reluctance sensors
• Particle trajectory analysis with steering and focusing magnets
• Optimized shapes of coils and pole pieces for electromagnets such as those used in MRI machines and magnetizing fixtures
• Transient analysis for “fast acting” devices

Applications

Actuators

Alternators and Generators

Coil Design

Electromagnetic Brakes and Clutches

Inductors

Levitators

Sensors

Loudspeakers

Magnetic Encoding

MRI

Motors

Relays and Contactors

Solenoids

Shielding

Electromagnets

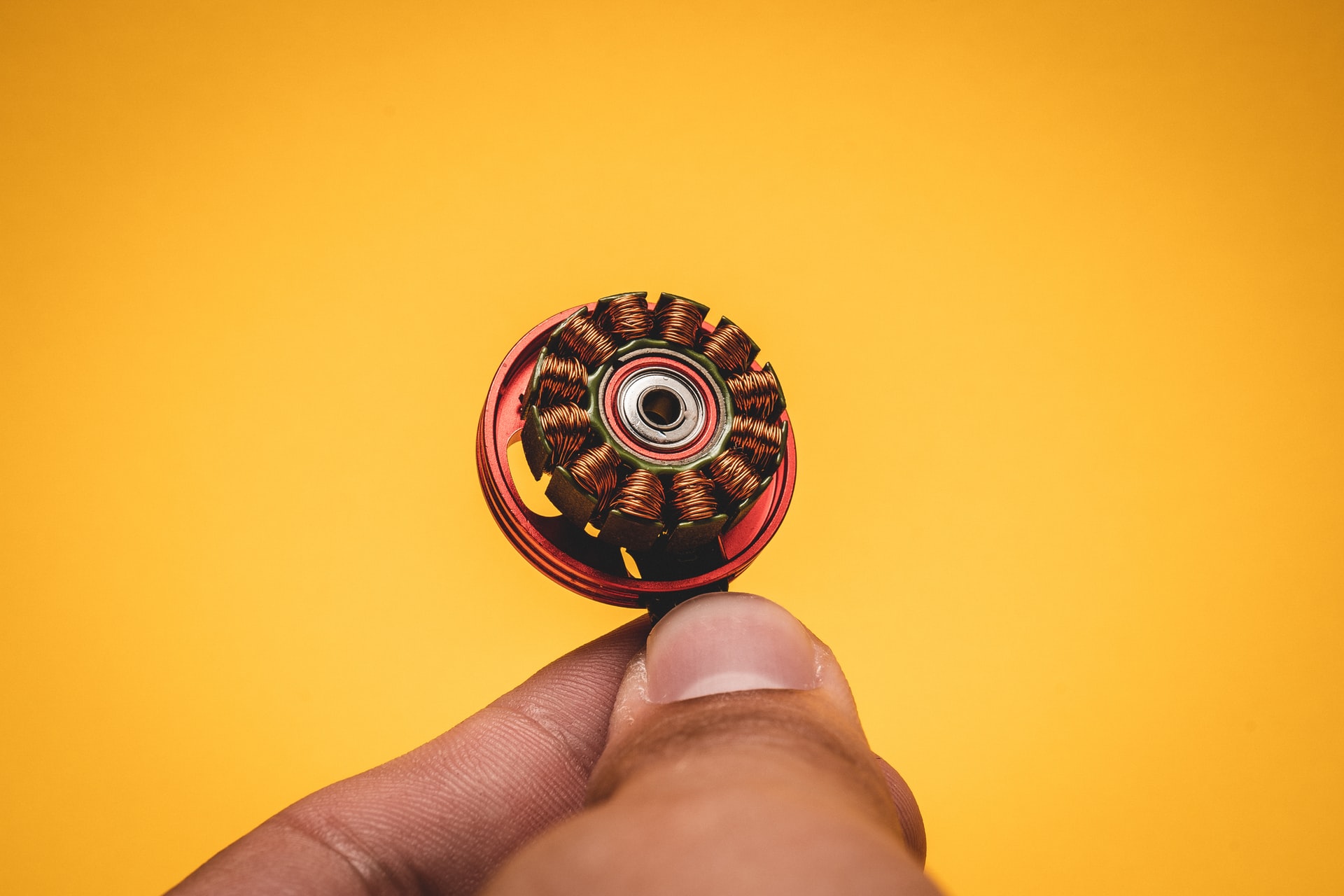

Magnetic Bearings

Magnetic Signatures

Magnetic Fixtures

Magnets

Non Destructive Testing

Particles
